	Solar Panel 20 Watt 12 Volt Policrystalline Silicon

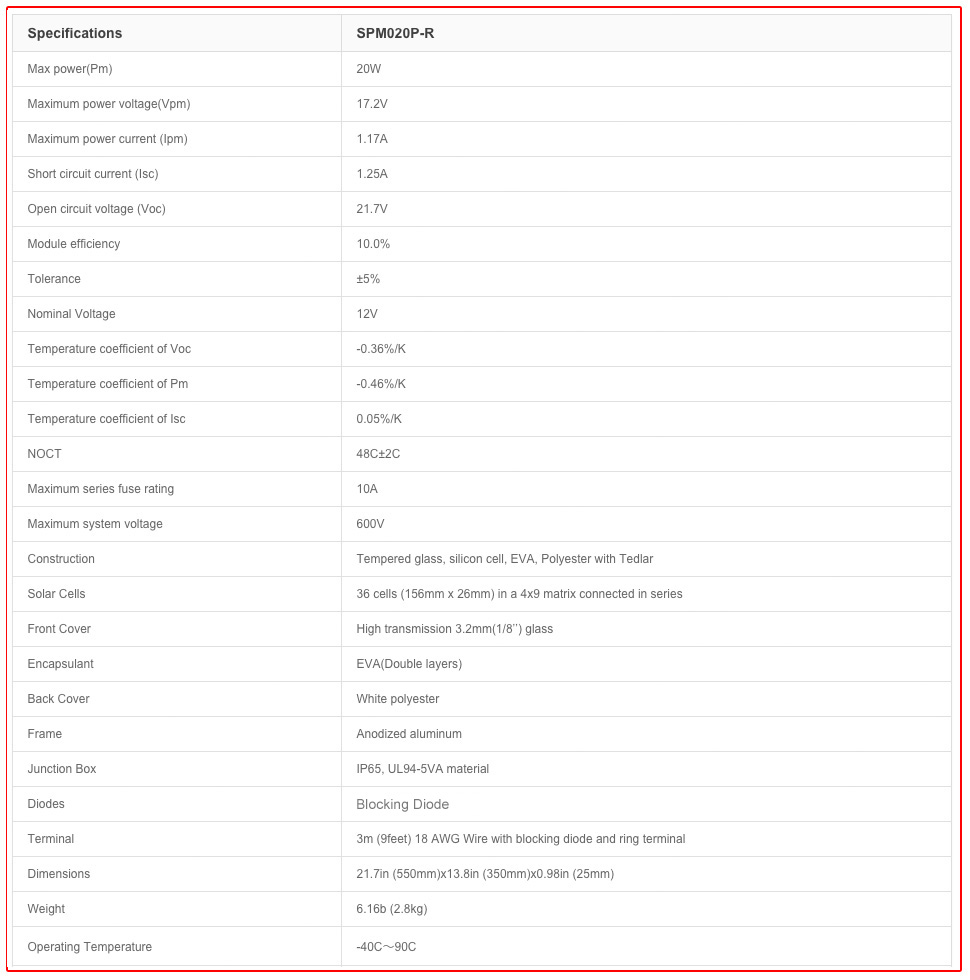

	Model Number: SPM020P-R
	Dimensions: 21.7 " x 13.8 " x 0.98" / 550mm x 350mm x 25mm
	Weight: 6.17 lb / 2.8kg
	Number of solar cells and connections: 36 ( 2 x 18 )
	Item Availability : IN STOCK

FEATURES

Power at STC ( PM ): 20 Watts

Maximum power voltage ( Vpm ): 17.2 Volts

Maximum power current ( Ipm ): 1.17 Amp

Open circuit voltage ( Voc ): 21.7 Volts

Short circuit current ( Isc ): 1.25 Amp

Tolerance: +- 5%

Product Warranty : 25 Years Limited Warranty

UL Certified : E330673

TUV : 0000022551

IEC: C1-ASN07001

ETL : 4001057

	LIMITS Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF Maximum system voltage: 600V DC Series fuse raiting: 10A COMPONENTS AND MECHANICAL DATA Front glass: 3.2mm tempered Junction Box: IP-65 rated Cable lengths: 9 ( ft ) Frame: Anodized aluminum alloy type 6063 - T5 Max Load: 5400Pa
